高純度黑磷晶體 Black Phosphorus-Crystal
晶體結構：正斜方晶結構晶體尺寸：~10mm
電學性能：半導體
晶體結構：斜方晶系
晶胞參數：a = 0.331 nm, b= 1.048, c = 0.437 nm, α = β = γ = 90°
晶體類型：合成
晶體純度：>99.995%
性質：半導體

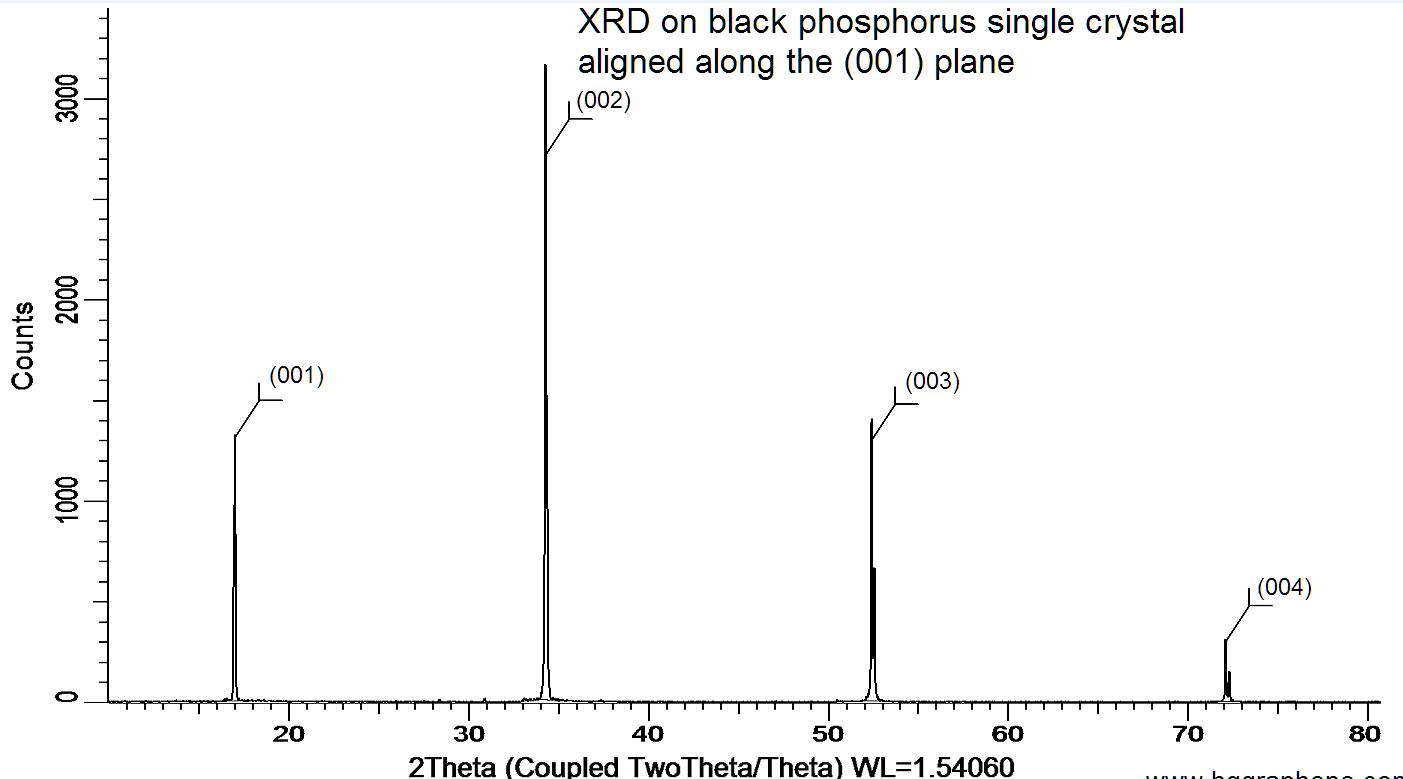

X-ray diffraction on a black phosphorus single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3, 4

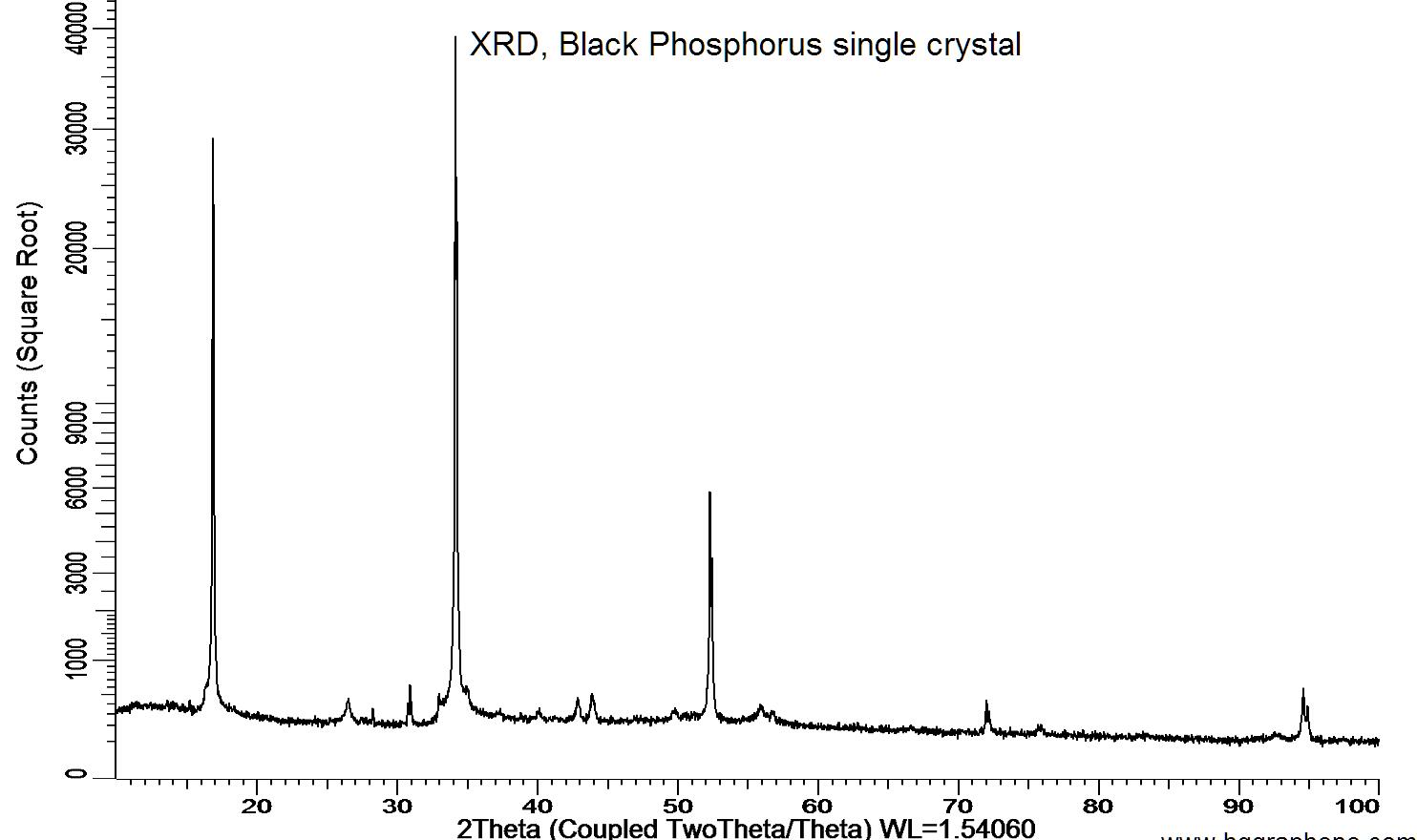

Powder X-ray diffraction (XRD) of a single crystal black phosphorus. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

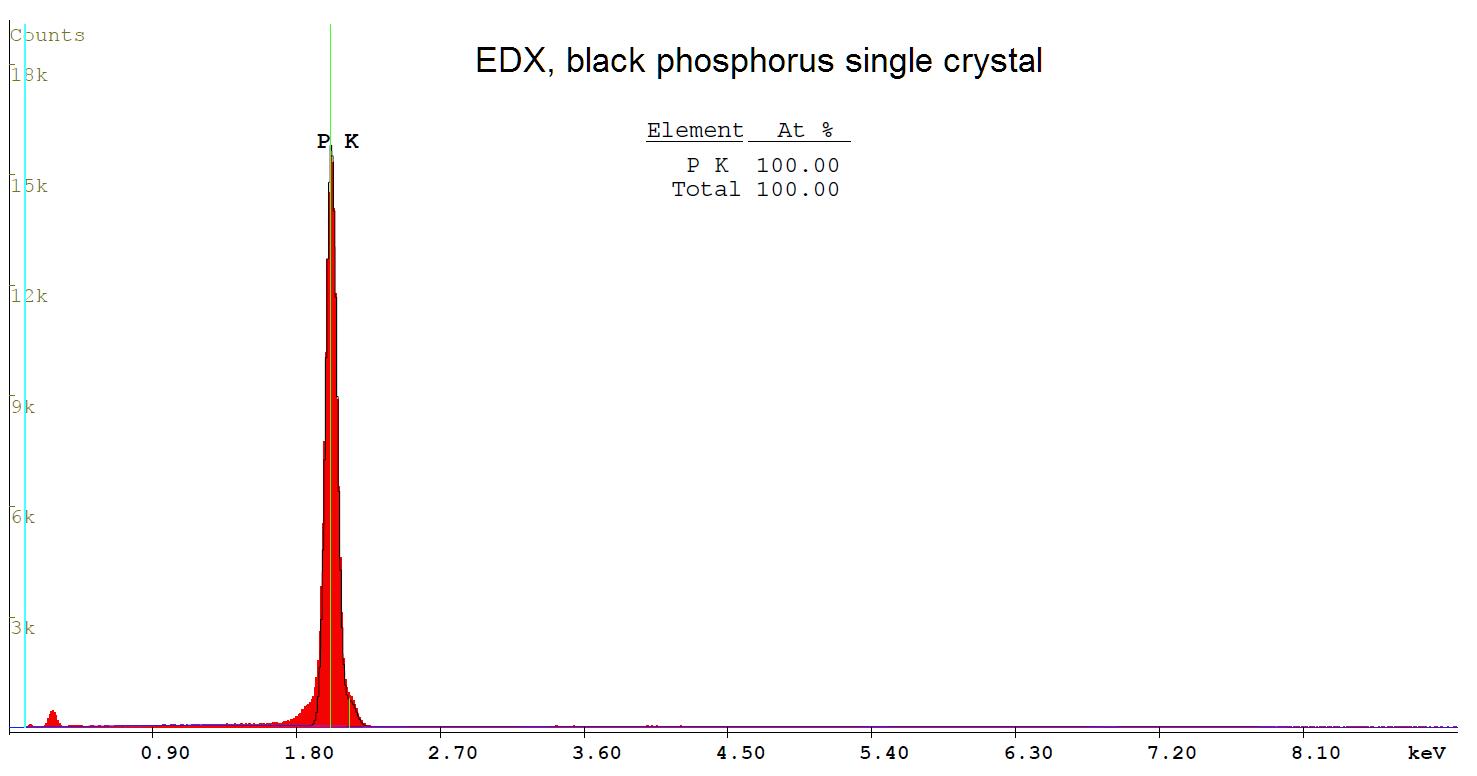

Stoichiometric analysis of a single crystal black phosphorus by Energy-dispersive X-ray spectroscopy (EDX).

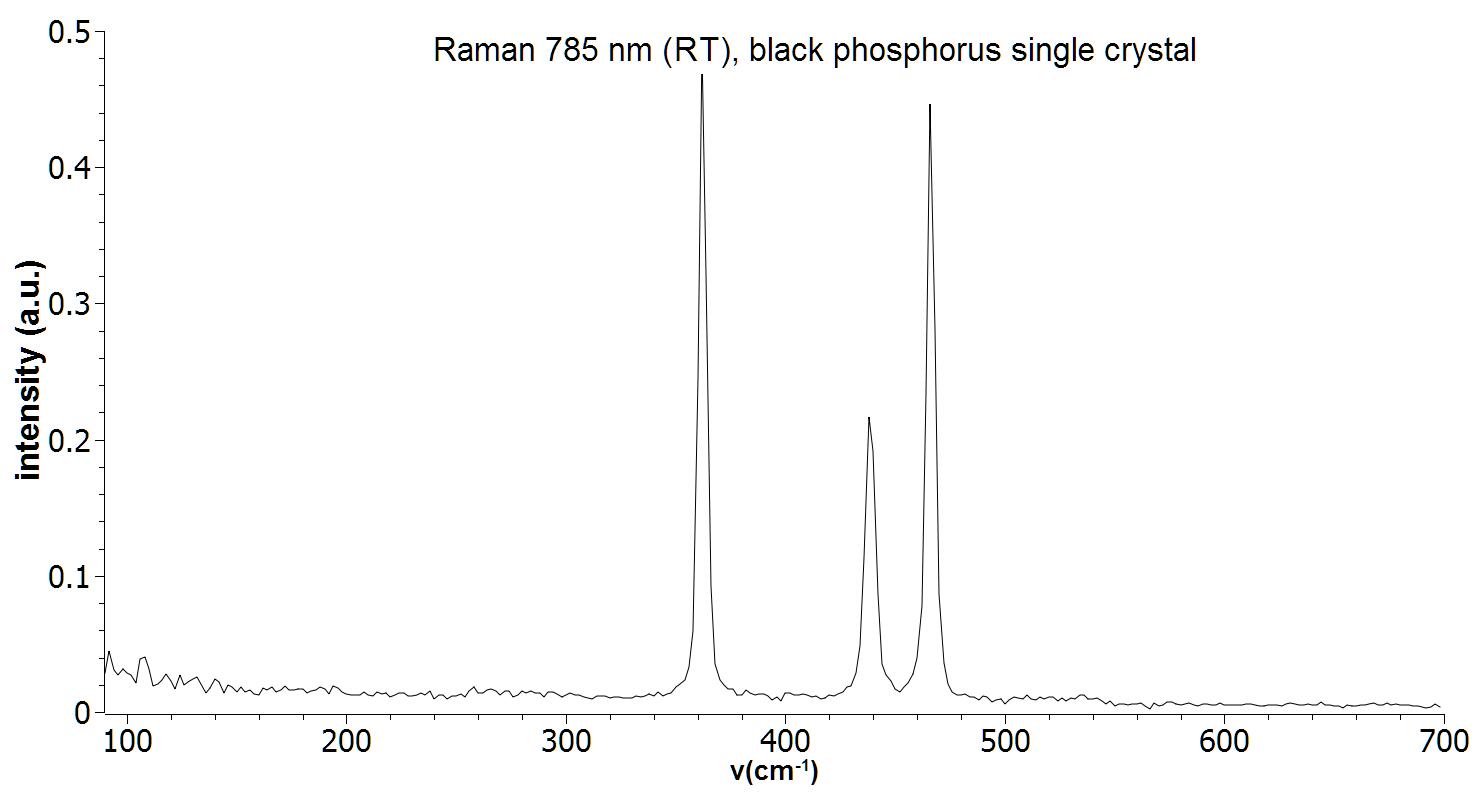

Raman spectrum of a single crystal black phosphorus. Measurement was performed with a 785nm Raman system at room temperature.
